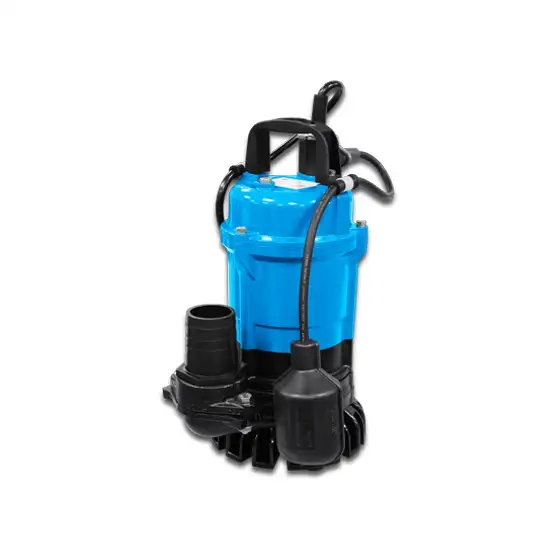

2AHS

Discharge: 2" NPT, vertical.

Spherical solids handling: 1/4"

HP: 0.5, 1 & 2

RPM: 3450

Impeller: 8 vane, open, semi-vortex. Hytrel® thermoplastic elastomer.

Shaft: 410 series stainless steel

Motor: dry type submersible motor, 1 & 3 phase, 115 & 230 volts, 60 Hz, 3500 RPM. For continuous duty, with thermal protector IP68 in winding, insulation class B.

Watch our video

---

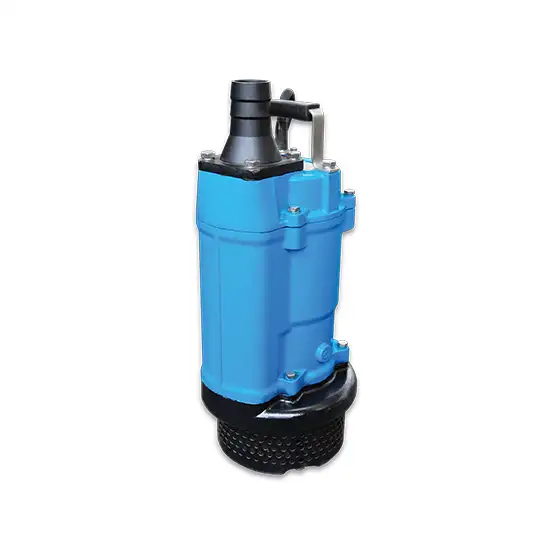

2KTM202

Discharge: 2" vertical for hose coupling. Cast iron ASTM A-48 class 30

HP: 2

RPM: 3450

Impeller: semi-open type, high chrome alloy.

Shaft: 420 AISI stainless steel

Motor: one phase induction motor, 230 volts, 60 Hz, 3450 RPM. Insulation class F and IP68 protection class.

---

2KTM203 / 204

Discharge: 2" vertical for hose coupling. Cast iron ASTM A-48 class 30

HP: 2

RPM: 3450

Impeller: semi-open type, high chrome alloy.

Shaft: 420 AISI stainless steel

Motor: three-phase induction motor, 230 & 460 volts, 60 Hz, 3450 RPM. Insulation class F and IP68 protection class.

---

2KTM303 / 304

Discharge: 2" vertical for hose coupling. Cast iron ASTM A-48 class 30

HP: 3

RPM: 3450

Impeller: semi-open type, high chrome alloy.

Shaft: 420 AISI stainless steel

Motor: three-phase induction motor, 230 & 460 volts, 60 Hz, 3450 RPM. Insulation class F and IP68 protection class.

---

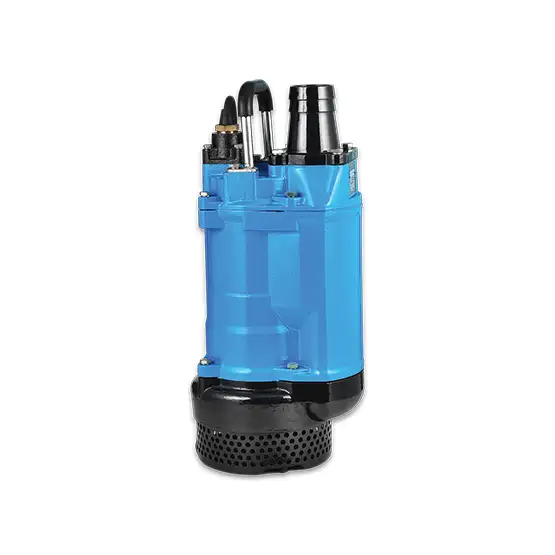

3KTM503 / 504

Discharge: 3" vertical for hose coupling. Cast iron ASTM A-48 class 30

HP: 5

RPM: 3450

Impeller: semi-open type, high chrome alloy.

Shaft: 420 AISI stainless steel

Motor: three-phase induction motor, 230 & 460 volts, 60 Hz, 3450 RPM. Insulation class F and IP68 protection class.

---

3KTM753 / 754

Discharge: 3" vertical for hose coupling. Cast iron ASTM A-48 class 30

HP: 7.5

RPM: 3450

Impeller: semi-open type, high chrome alloy.

Shaft: 420 AISI stainless steel

Motor: three-phase induction motor, 230 & 460 volts, 60 Hz, 3450 RPM. Insulation class F and IP68 protection class.

---

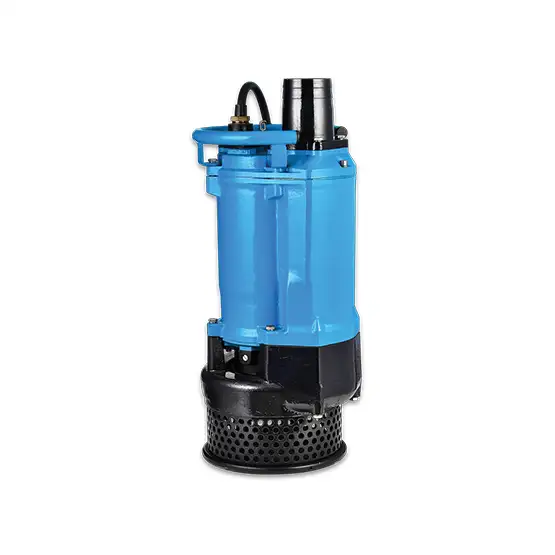

4KTM1003 / 1004

Discharge: 4" vertical for hose coupling. Cast iron ASTM A-48 class 30

HP: 10

RPM: 3450

Impeller: semi-open type, high chrome alloy.

Shaft: 420 AISI stainless steel

Motor: three-phase induction motor, 230 & 460 volts, 60 Hz, 3450 RPM. Insulation class F and IP68 protection class.

---

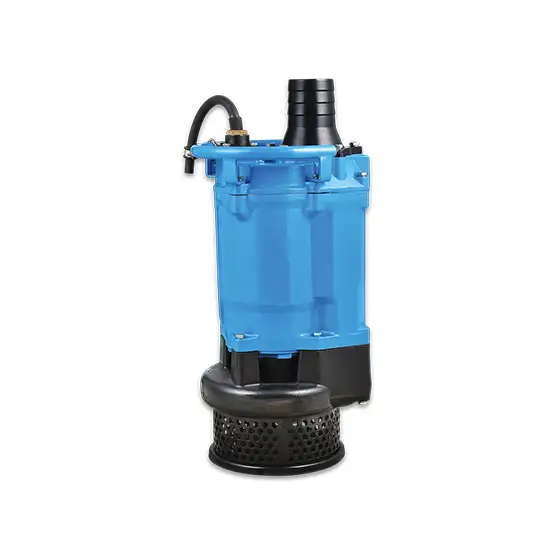

4KTM1503 / 1504

Discharge: 4" vertical for hose coupling. Cast iron ASTM A-48 class 30

HP: 15

RPM: 3450

Impeller: semi-open type, high chrome alloy.

Shaft: 420 AISI stainless steel

Motor: three-phase induction motor, 230 & 460 volts, 60 Hz, 3450 RPM. Insulation class F and IP68 protection class.

---
