Submersible Slurry Pumps

In various industries including mining, dredging, wastewater treatment, and construction, the efficient pumping of abrasive and viscous fluids like sludge, mud, and industrial waste is crucial. These pumps excel in handling heavy or abrasive materials where traditional pumps may face challenges. They play a vital role in transferring slurry and sediment in demanding environments, contributing significantly to material handling and fluid management efficiency.

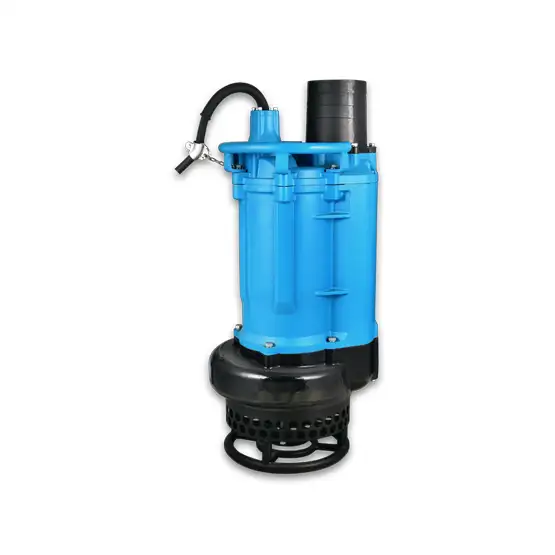

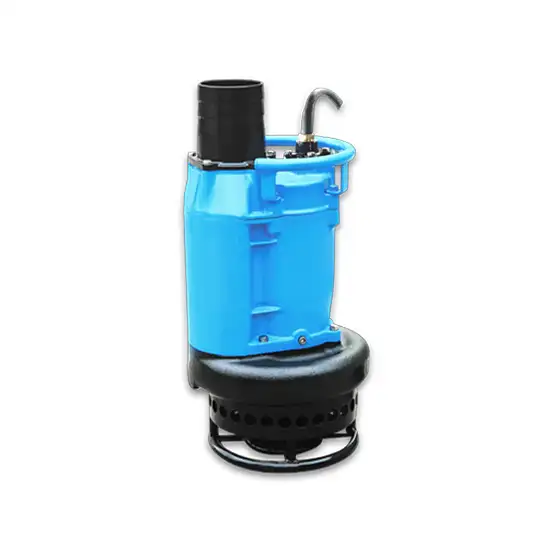

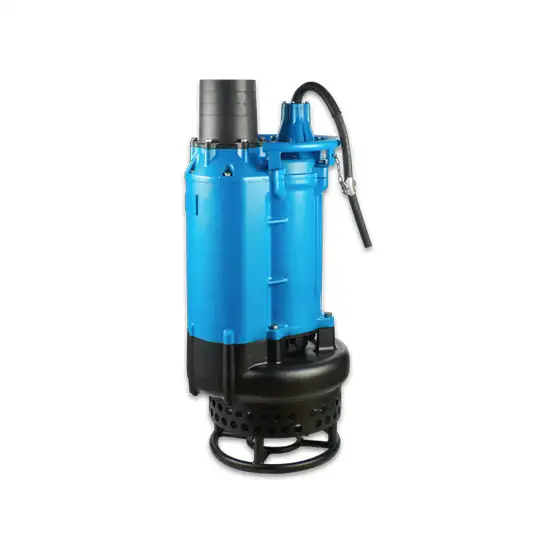

Submersible slurry pump KMUD 5 & 8 HP Barmesa Pumps heavy-duty solids pumping

3KMUD553 / 554 series

Key features:

  • Discharge: 3" vertical for hose coupling. Cast iron ASTM A-48 Class 30.
  • HP: 5
  • RPM: 1750
  • Impeller: semi-open type, high chrome alloy.
  • Shaft: 420 AISI stainless steel
  • Motor: three-phase induction motor, 230 & 460 V, 60 Hz, 1750 RPM. Insulation Class F and IP68 protection class.
Data Sheet
User Manual
Product Brochure
Submersible slurry pump KMUD 5 & 8 HP Barmesa Pumps heavy-duty solids pumping

4KMUD803 / 804 series

Key features:

  • Discharge: 4" vertical for hose coupling. Cast iron ASTM A-48 Class 30.
  • HP: 8
  • RPM: 1750
  • Impeller: semi-open type, high chrome alloy.
  • Shaft: 420 AISI stainless steel
  • Motor: three-phase induction motor, 230 & 460 V, 60 Hz, 1750 RPM. Insulation Class F and IP68 protection class.
Data Sheet
User Manual
Product Brochure
Submersible slurry pump KMUD 12 & 15 HP Barmesa Pumps for mining and industrial slurries

6KMUD1203 / 1204 series

Key features:

  • Discharge: 6" vertical for hose coupling. Cast iron ASTM A-48 Class 30.
  • HP: 12
  • RPM: 1750
  • Impeller: semi-open type, high chrome alloy.
  • Shaft: 420 AISI stainless steel
  • Motor: three-phase induction motor, 230 & 460 V, 60 Hz, 1750 RPM. Insulation Class F and IP68 protection class.
Data Sheet
User Manual
Product Brochure
Submersible slurry pump KMUD 12 & 15 HP Barmesa Pumps for mining and industrial slurries

6KMUD1503 / 1504 series

Key features:

  • Discharge: 6" vertical for hose coupling. Cast iron ASTM A-48 Class 30.
  • HP: 15
  • RPM: 1750
  • Impeller: semi-open type, high chrome alloy.
  • Shaft: 420 AISI stainless steel
  • Motor: three-phase induction motor, 230 & 460 V, 60 Hz, 1750 RPM. Insulation Class F and IP68 protection class.
Data Sheet
User Manual
Product Brochure
Submersible slurry pump KMUD 20 & 30 HP Barmesa Pumps designed for high-concentration slurries

8KMUD2003 / 2004 series

Key features:

  • Discharge: 8" vertical for hose coupling. Cast iron ASTM A-48 Class 30.
  • HP: 20
  • RPM: 1750
  • Impeller: semi-open type, high chrome alloy.
  • Shaft: 420 AISI stainless steel
  • Motor: three-phase induction motor, 230 & 460 V, 60 Hz, 1750 RPM. Insulation Class F and IP68 protection class.
Data Sheet
User Manual
Product Brochure
Submersible slurry pump KMUD 20 & 30 HP Barmesa Pumps designed for high-concentration slurries

8KMUD3004 series

Key features:

  • Discharge: 8" vertical for hose coupling. Cast iron ASTM A-48 Class 30.
  • HP: 30
  • RPM: 1750
  • Impeller: semi-open type, high chrome alloy.
  • Shaft: 420 AISI stainless steel
  • Motor: three-phase induction motor, 460 V, 60 Hz, 1750 RPM. Insulation Class F and IP68 protection class.
Data Sheet
User Manual
Product Brochure
Submersible slurry pump KMUD 40 & 50 HP Barmesa Pumps durable high-performance pump

8KMUD4004 series

Key features:

  • Discharge: 8" vertical for hose coupling. Cast iron ASTM A-48 Class 30.
  • HP: 40
  • RPM: 1750
  • Impeller: semi-open type, high chrome alloy.
  • Shaft: 420 AISI stainless steel
  • Motor: three-phase induction motor, 460 V, 60 Hz, 1750 RPM. Insulation Class F and IP68 protection class.
Data Sheet
User Manual
Product Brochure
Submersible slurry pump KMUD 40 & 50 HP Barmesa Pumps durable high-performance pump

8KMUD5004 series

Key features:

  • Discharge: 8" vertical for hose coupling. Cast iron ASTM A-48 Class 30.
  • HP: 50
  • RPM: 1750
  • Impeller: semi-open type, high chrome alloy.
  • Shaft: 420 AISI stainless steel
  • Motor: three-phase induction motor, 460 V, 60 Hz, 1750 RPM. Insulation Class F and IP68 protection class.
Data Sheet
User Manual
Product Brochure
