Submersible Solids Handling Pumps
with Explosion-Proof Motors

In industries like chemical processing, oil and gas, and wastewater treatment, these pumps are essential for safely managing fluids containing solid particles and debris. Equipped with explosion-proof motors for hazardous environments, they ensure secure fluid handling while reducing the risk of ignition in combustible atmospheres.

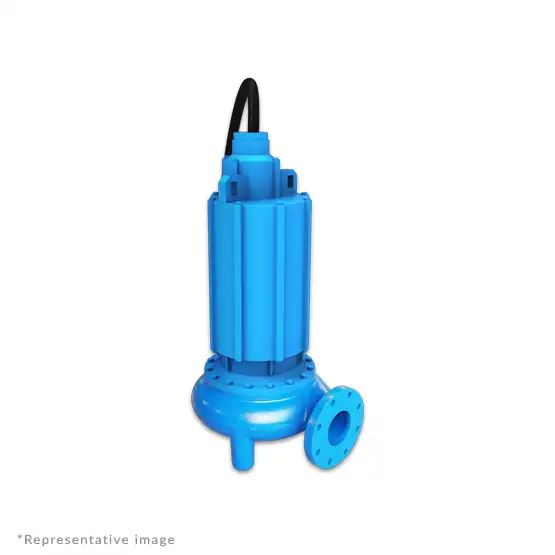

Explosion-proof submersible solids-handling pump 4XBSE-ADS Barmesa Pumps for hazardous environments

4XBSE-ADS series

Key features:

  • Discharge: 4", 125 lb, flange horizontal.
  • Spherical solids handling: 3"
  • HP: 5 - 15
  • RPM: 1150 & 1750
  • Impeller: 2 vane, open, with vanes on back side. Cast iron ASTM A-48 Class 30.
  • Shaft: 416 series stainless steel
  • Motor: NEMA B, three-phase, 230 & 460 V, 60 Hz, 1150 & 1750 RPM, air cooled. Explosion-proof, Class 1, Division 1, Group C & D, insulation Class F. Requires overload protection to be included in control panel.

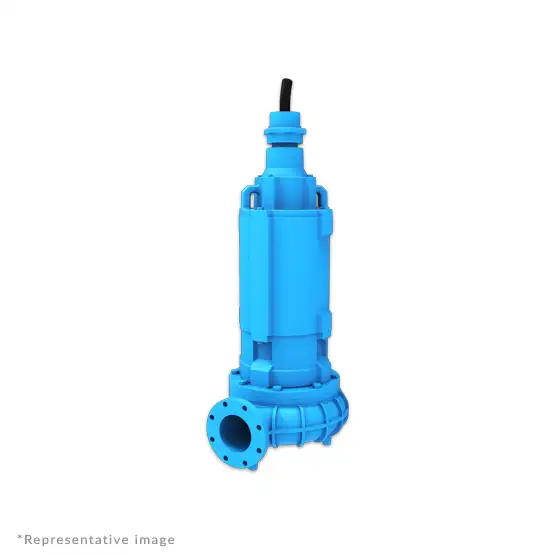

Explosion-proof submersible solids-handling pump 4XBSE-HADS Barmesa Pumps for volatile fluid handling

4XBSE-HADS series

Key features:

  • Discharge: 4", 125 lb, flange horizontal.
  • Spherical solids handling: 3"
  • HP: 7.5 - 15
  • RPM: 1750
  • Impeller: 2 vane, open, with vanes on back side. Cast iron ASTM A-48 Class 30.
  • Shaft: 416 series stainless steel
  • Motor: NEMA B, three-phase, 230 & 460 V, 60 Hz, 1150 & 1750 RPM, air cooled. Explosion-proof, Class 1, Division 1, Group C & D, insulation Class F. Requires overload protection to be included in control panel.

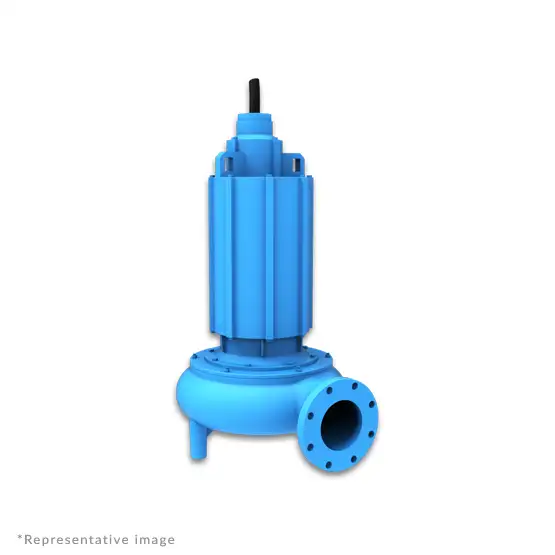

Explosion-proof submersible solids-handling pump 6XBSE-ADS Barmesa Pumps for extreme conditions

6XBSE-ADS series

Key features:

  • Discharge: 6", 125 lb, flange horizontal.
  • Spherical solids handling: 4"
  • HP: 15 - 75
  • RPM: 1150 & 1750
  • Impeller: 1 vane, closed, with vanes on back side. Cast iron ASTM A-48 Class 30.
  • Shaft: 416 series stainless steel
  • Motor: NEMA B, three-phase, 230 & 460 V, 60 Hz, 1150 & 1750 RPM, air cooled. Explosion-proof, Class 1, Division 1, Group C & D, insulation Class F. Requires overload protection to be included in control panel.

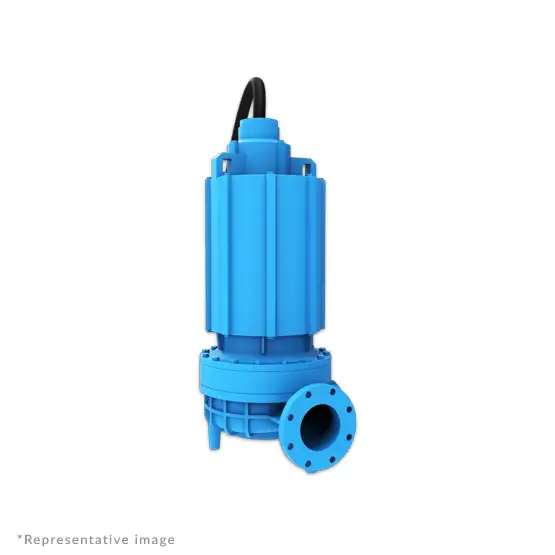

Explosion-proof submersible solids-handling pump 6XBSE-HADS Barmesa Pumps reliable in flammable areas

6XBSE-HADS series

Key features:

  • Discharge: 6", 125 lb, flange horizontal.
  • Spherical solids handling: 3"
  • HP: 15 - 75
  • RPM: 1150 & 1750
  • Impeller: 1 vane, closed, with vanes on back side. Cast iron ASTM A-48 Class 30.
  • Shaft: 416 series stainless steel
  • Motor: NEMA B, three-phase, 230 & 460 V, 60 Hz, 1150 & 1750 RPM, air cooled. Explosion-proof, Class 1, Division 1, Group C & D, insulation Class F. Requires overload protection to be included in control panel.

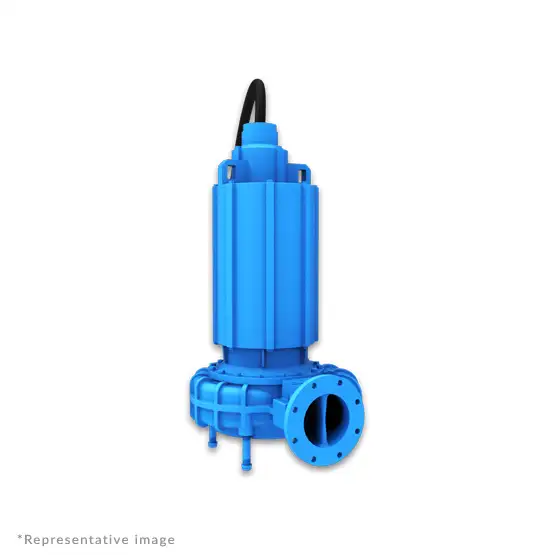

Explosion-proof submersible solids-handling pump 8XBSE Barmesa Pumps for heavy industrial sludge

8XBSE-HADS series

Key features:

  • Discharge: 8", 125 lb, flange horizontal.
  • Spherical solids handling: 3"
  • HP: 30-150
  • RPM: 1150
  • Impeller: 3 vane, closed, with with a bronze wear ring and vanes on back side. Cast iron ASTM A-48, Class 30.
  • Shaft: 416 series stainless steel
  • Motor: NEMA B, three-phase, 460 V, 60 Hz, 1150 RPM, air cooled. Explosion Proof, Class 1, Division 1, Group C & D, insulation Class F. Requires overload protection to be included in control panel.
