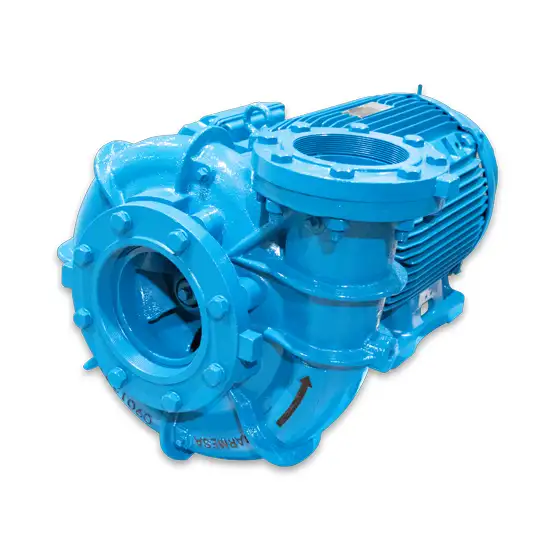

IA series
Suction: 1½" - 8" NPT or flange
Discharge: 1" - 6" NPT or flange
HP: 2 - 125
RPM: 1750 & 3500
Impeller: enclosed, dynamically balanced. Cast iron ASTM A-48, class 30.
Motor: high quality premium efficiency TEFC electric motors, designed & developed in accordance with industry standards for industrial and commercial pumping applications.
1 & 3 phases, 60 Hz
Frame sizes: 182JM to 405JM
IB series
Suction: 2" - 3" NPT, female.
Discharge: 1½" - 2½" NPT, female.
HP: 1 - 15
RPM: 1750 & 3500
Impeller: investment casting, statically balanced. Stainless steel 304.
Motor: high quality premium efficiency TEFC electric motors, designed & developed in accordance with industry standards for industrial and commercial pumping applications.
1 & 3 phases, 60 Hz
Frame sizes: 143JM to 254JM
IC1¼ series
Suction: 1½" NPT, female.
Discharge: 1¼" NPT, female.
HP: 1 - 3
RPM: 3500
Impeller: 5 vanes, closed, statically balanced. Cast iron ASTM A-48, class 30.
Motor: high quality premium efficiency TEFC or ODP electric motors, designed & developed in accordance with industry standards for industrial and commercial pumping applications.
1 & 3 phases, 60 Hz
IC1½ series
Suction: 1½" NPT, female.
Discharge: 1½" NPT, female.
HP: 1.5 - 7.5
RPM: 3500
Impeller: 4 vanes, closed, statically balanced. Noryl®.
Motor: high quality premium efficiency TEFC or ODP electric motors, designed & developed in accordance with industry standards for industrial and commercial pumping applications.
1 & 3 phases, 60 Hz
IC1½H series
Suction: 1½" NPT, female.
Discharge: 1½" NPT, female.
HP: 1 - 15
RPM: 3500
Impeller: 5 vanes, closed, statically balanced. Cast iron ASTM A-48, class 30.
Motor: high quality premium efficiency TEFC or ODP electric motors, designed & developed in accordance with industry standards for industrial and commercial pumping applications.
1 & 3 phases, 60 Hz
